Manual
Lift

In your day-to-day world, you need to know that your patients and caregivers are safe and secure, in every situation.

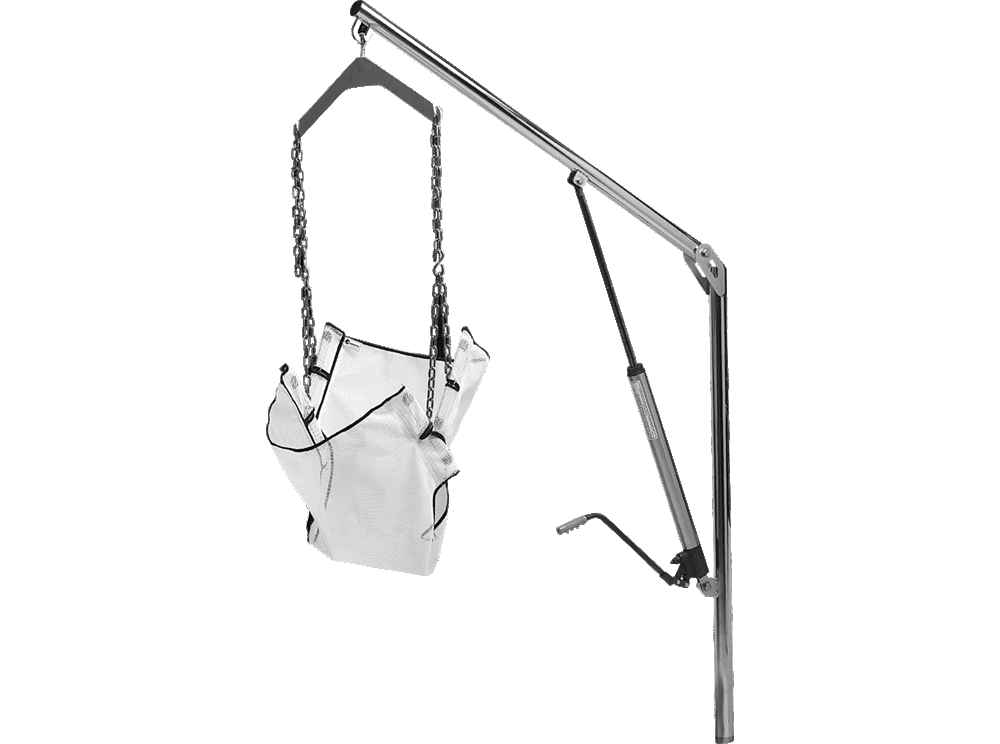

Power-Packer’s self-contained manual lift hydraulic actuator is a reliable, cost-effective solution for patient handling and lifting devices. This smooth-action, motion control system consists of a hand hydraulic pump, reservoir, cylinder and valve. Added external hoses or fittings help ensure easiest installation and use. The maintenance-free design is built to exact standards for years of trouble-free operation.

  • Zero-maintenance design
  • Self-contained, fully manual operation
  • Simple installation and operation
  • Dependable load-holding capability
  • Requires no external source of power

Manual Lift specifications

Manual Lift applications include: Patient lifting devices, stretchers, multi-function tables and multi-function chairs.

  • Stroke length: 19.0”
  • Maximum dynamic push force: 1,000 lbs.
  • Descent control: flow control valve
  • Ram effective area: 0.69 sq. in.
  • Pump plunger dia: 0.56”
  • Displacement per stroke: 0.22 cu. in.

Talk with our engineering team today to determine
the best medical actuator for your unique needs.
