Hydraulic Cab
Tilt Systems

Power-Packer’s extensive range of cab tilt cylinders, hydraulic pumps, hydraulic latches and hood assist units make it possible for us to design a cab tilting system that is perfectly matched to your application.

We can offer you a better fitting system, which results in a better performing system and a safer, more efficient and productive work environment. Power-Packer hydraulic pumps, cylinders and latches combine to create some of the most powerful and durable hydraulic motion control systems available anywhere. Our engineers understand the harsh environments and rigorous demands of on- and off-road equipment, military operations, and fire and rescue settings, and design products that respond as needed in every situation.

Cab Tilt Systems

With our complete range of hydraulic cab tilt components, Power-Packer can work with you to develop a cab tilting system perfectly matched to meet the weight and specs of your cab. When you combine our hydraulic cylinders with any of our hydraulic pumps — whether electric, air or manually powered — you have a better fitting, smarter system that delivers the performance, ergonomic efficiency and safety required to access critical under cab systems.

Specialty Pumps

Choose from a variety of hard-working hydraulic pumps to meet your specific application need. Power-Packer offers options such as high quality standard hand pumps or electric pumps that require just a simple push of a button to get down to work.

  • Maximum operating pressures from 3,000 to 5,000 psi
  • Reservoir capacity of 35 or 65 cubic inches
  • Manual override on all pumps

Hydraulic Cylinders

Lightweight and dependable, Power-Packer’s line of hydraulic cab tilt cylinders are single- or double-acting and available in a variety of rod end and base mounting configurations. Optional internal tamper-proof velocity fuses or built-in flow control ensure added safety and performance.

  • Maximum operating pressure of 5,000 psi
  • Bore sizes from 1.25” to 3.0”
  • Steel plunger with hard chrome-plated surface

Hydraulic Latches

Power-Packer’s hydraulic latch secures covers and cabs for safe travel and is ideal for new and existing applications. Compact size and strength, along with versatile mounting capability easily meet single or multiple latch needs. Our unique, patented design includes a latch indicator — either a visual pin or an electrical system — with options such as an indicator light or transmission lock that indicates when the latch has engaged mechanically or released hydraulically.

  • Maximum vertical pull load of 10,000 lbs.
  • Maximum hydraulic pressure of 5,000 psi

Download FIRE & RESCUE/HYDRAULIC CAB TILT BROCHURE

Download FIRE & RESCUE/HYDRAULIC CAB TILT SPECIFICATION SHEET

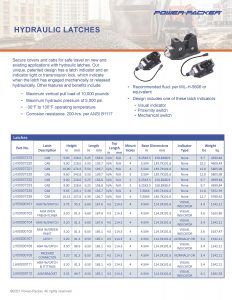

Download Latches Specification Sheet

Talk with our engineering team today
to determine the best hydraulic cab tilt system
for your unique needs.



Have a specific cab tilt application need?
